Thermal Management Components
TC Components develops custom thermal gap pads and die-cut interface parts shaped for heat-transfer paths, gap filling and assembly fit in electronic and industrial equipment.
PRODUCT OVERVIEW
Thermal Parts Built Around Contact and Gap
A thermal gap pad is specified by the surfaces it meets, the available gap and the assembly pressure. Custom die-cut shapes help place the selected material where the design needs contact; material performance is confirmed separately for each project.
COMPONENT FORMS
Typical Component Forms
Pad shape, thickness and backing follow the mating surfaces and assembly route.
Thermal Gap Pads
Compliant shapes for defined gaps between surfaces.
Thermal Interface Pads
Cut profiles for intended contact areas.
Thermally Conductive Pads
Material-defined pads for a specified heat path.
Thermal Gap Filler Pads
Shaped filler pieces for designed spaces.
Die-Cut Thermal Sheets
Thin sheet profiles and openings to a drawing.
Adhesive-Backed Thermal Parts
Thermal profiles with backing where specified.

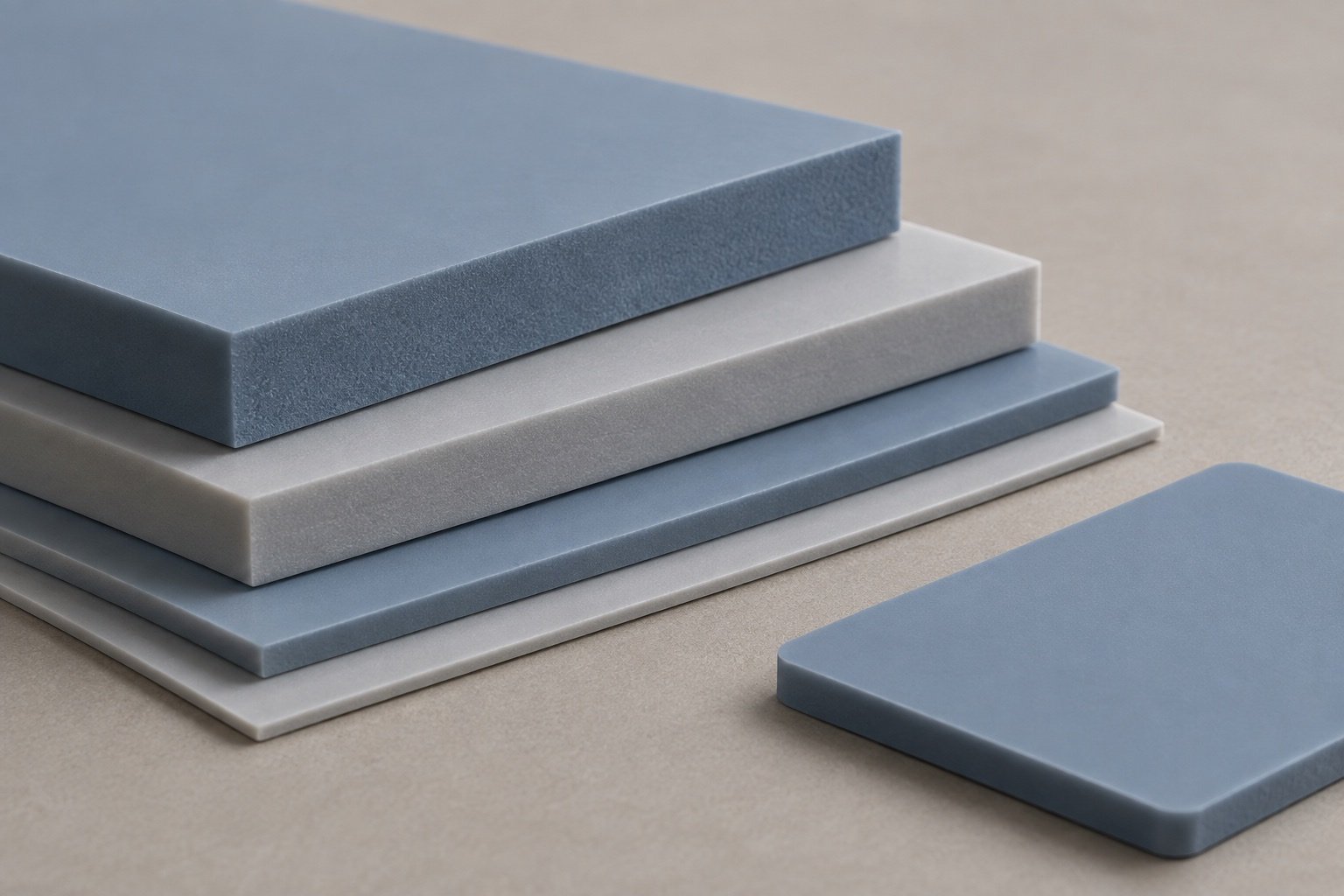

MATERIALS
Thermal Management Materials
Thermal interface sheet and compliant silicone-based material families may be considered for a gap or contact surface. The material, thickness and construction are confirmed against the thermal design and assembly pressure for each project.
Explore Thermal Management Materials
ENGINEERING FIRST
Engineering Considerations
Begin with the gap, the mating surfaces and the expected compression.
Gap & Thickness
Nominal space, variation and intended pad thickness.
Contact & Compression
Mating surfaces, assembly pressure and interface fit.
Geometry & Placement
Cut profile, contact area and adhesive requirement.

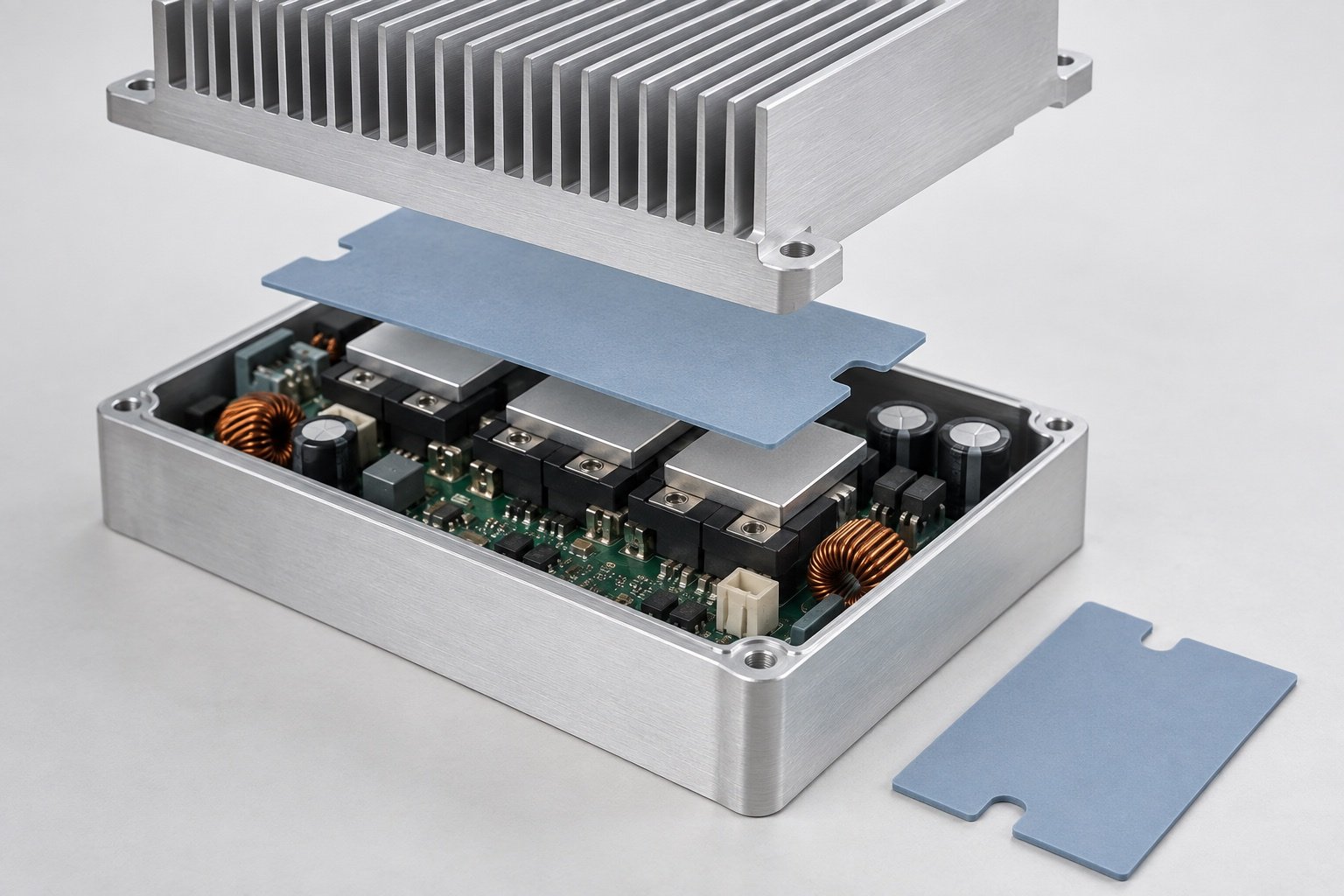

APPLICATIONS
Where These Components Are Used
Thermal gap pads and interface parts are considered where electronic assemblies need a defined contact path between components and surrounding structures.
RELATED CAPABILITIES

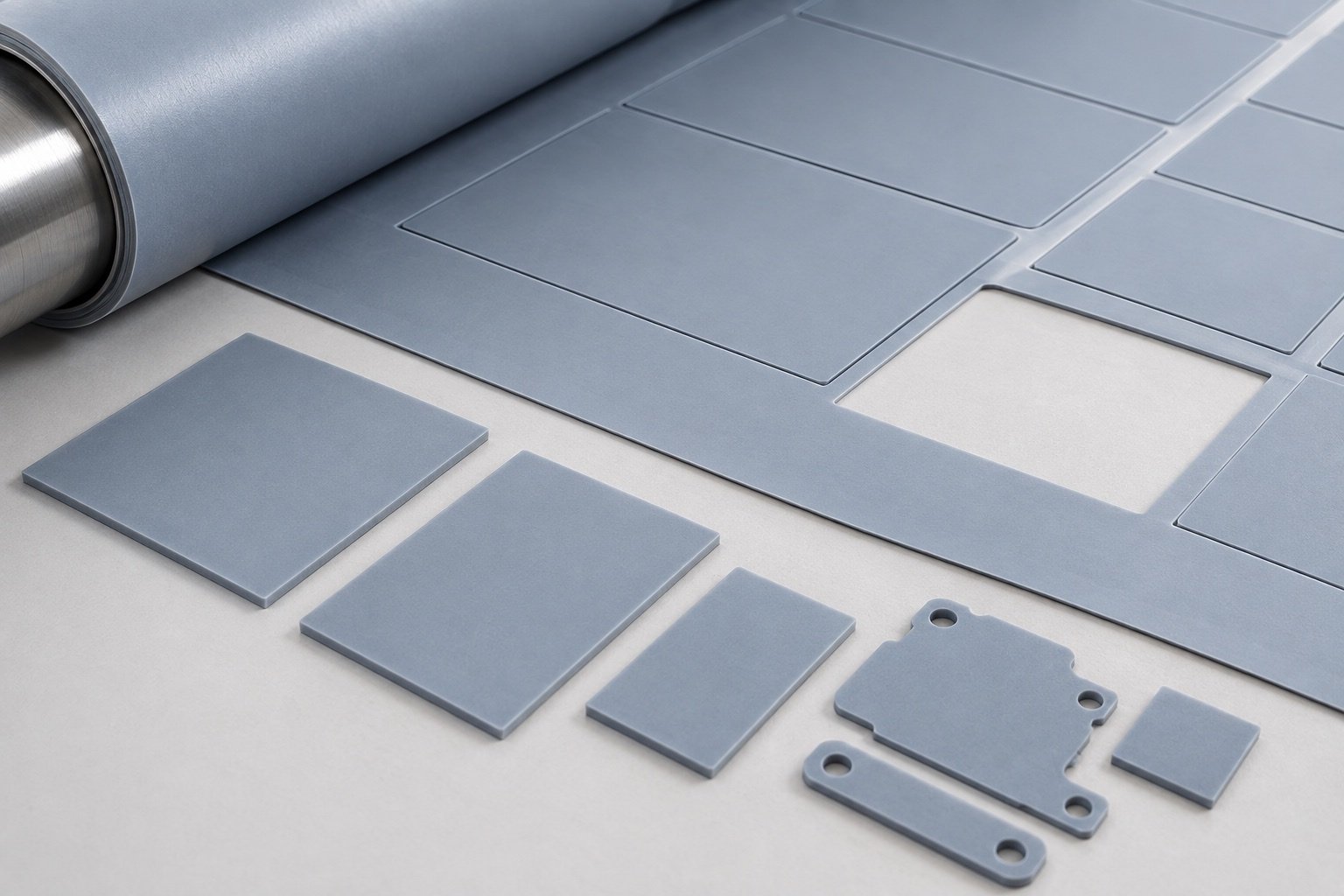

How We Manufacture Them
The material and geometry set the cutting route; backing and checks are added only where the design calls for them.
Precision Die Cutting
Pad outlines, cutouts and fit features; prototypes can be discussed.
Lamination & Bonding
Specified adhesive backing or multi-layer construction where suitable.
Quality & Tolerance Control
Drawing-based review of thickness, shape and placement features.

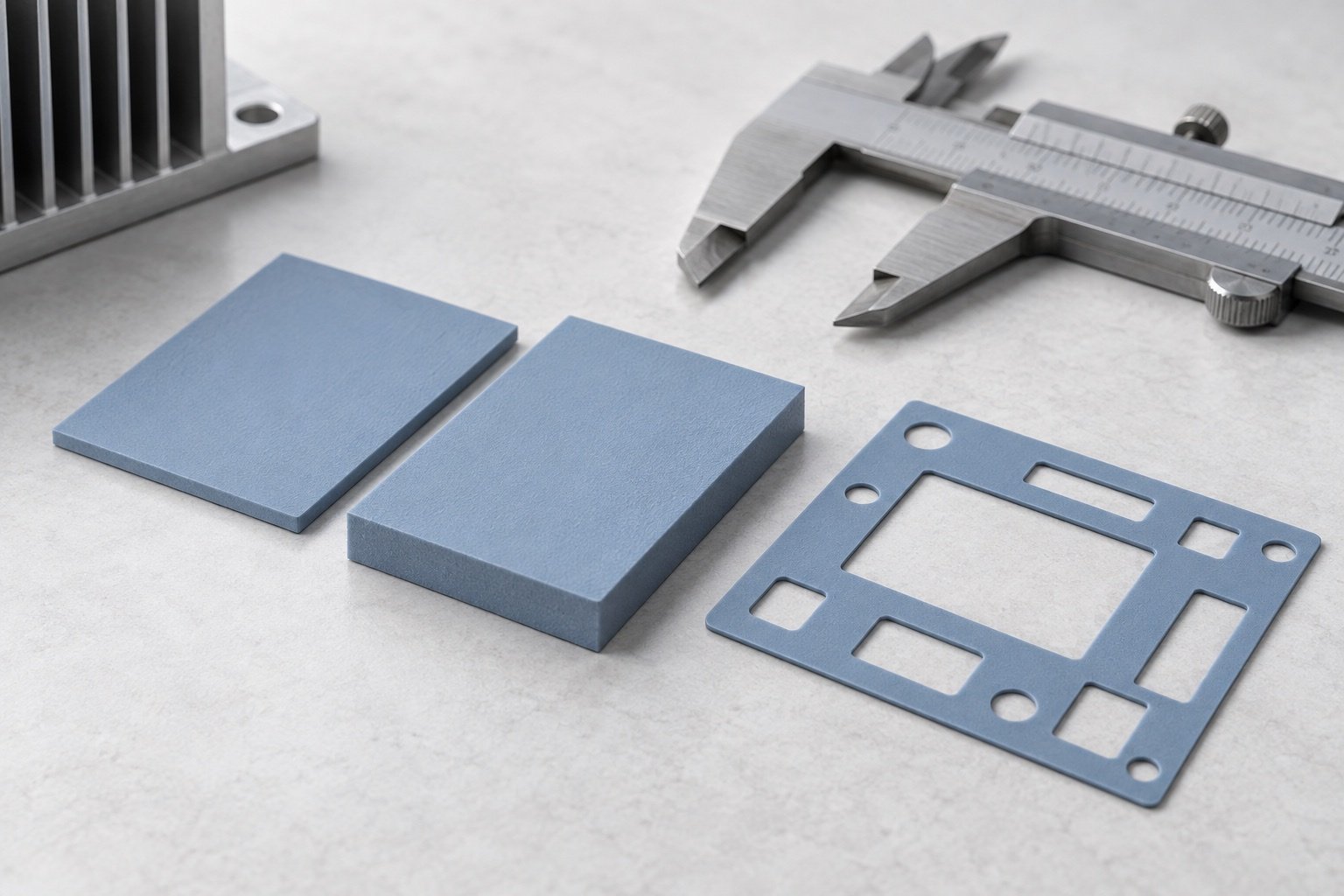

QUALITY / VERIFICATION
Review Thickness and Contact Fit
Verification follows the agreed drawing and material construction. Visual and dimensional checks assess the supplied profile; thermal performance is specified through the chosen material and project validation plan.
- Drawing review
- Material confirmation
- Thickness and profile review
- Dimensional inspection
- Visual inspection
FAQ
Thermal Component FAQs
Answers about gap pads, contact, material and project input.
What is a thermal gap pad?
A thermal gap pad is a shaped interface part intended to contact two surfaces across a designed gap. Its material and thickness are selected for the application.
How is pad thickness selected?
Start with the gap range, mating surfaces and assembly pressure. A specific thickness is agreed only after reviewing the design and chosen material.
Can a thermal interface pad be die cut to a drawing?
The pad profile, openings and placement features can be reviewed from a drawing or sample. Material suitability is considered alongside the geometry.
Does compression affect the interface?
Compression influences contact and fit. The acceptable range depends on the selected material and assembly, so it should be defined in the project requirements.
Can thermal pads include adhesive backing?
A backing can be considered when placement requires it, subject to material compatibility and the intended heat-transfer path.
What information is needed for a thermal pad quotation?
Share the drawing, gap and surface details, material or thickness preference, assembly pressure or placement method, application conditions and estimated quantity.
START A PROJECT
Have a Thermal Gap Pad Project?
Send us your drawing, gap and contact requirements, material preferences and estimated quantity for review.
