MATERIAL OVERVIEW

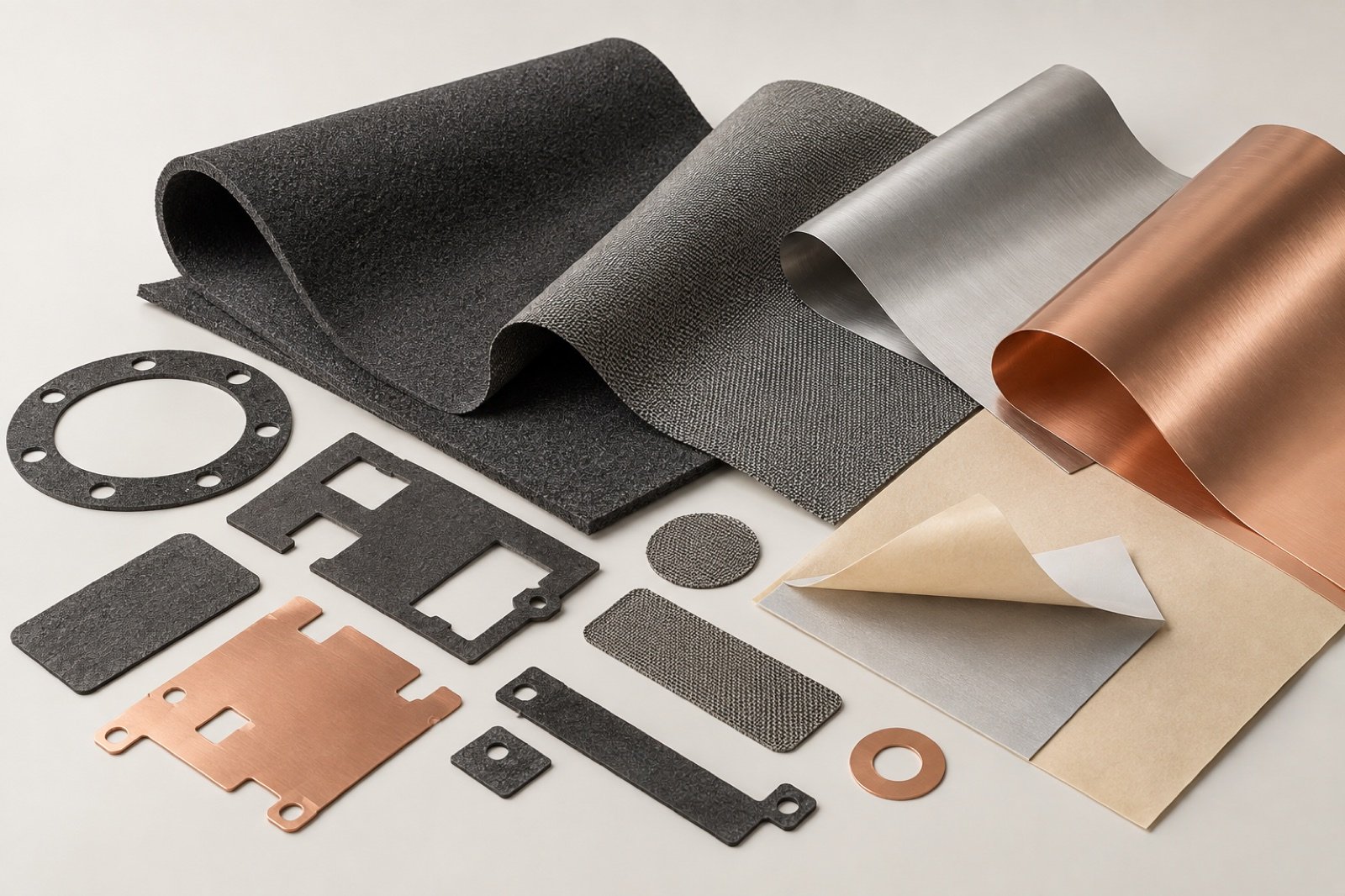

Materials for EMI Shielding & Conductive Interfaces
Electromagnetic shielding materials serve different roles in an assembly. The electrical contact, grounding path, compression, available space and finished geometry all inform the material review.
Selection starts with the required interface and project specification. Material form and die-cut construction are considered together, without assuming one material suits every design.
MATERIAL FAMILIES
Different forms for different interfaces.
These are conductive shielding material families for project evaluation. Specific grades, availability and suitability require confirmation against the application.

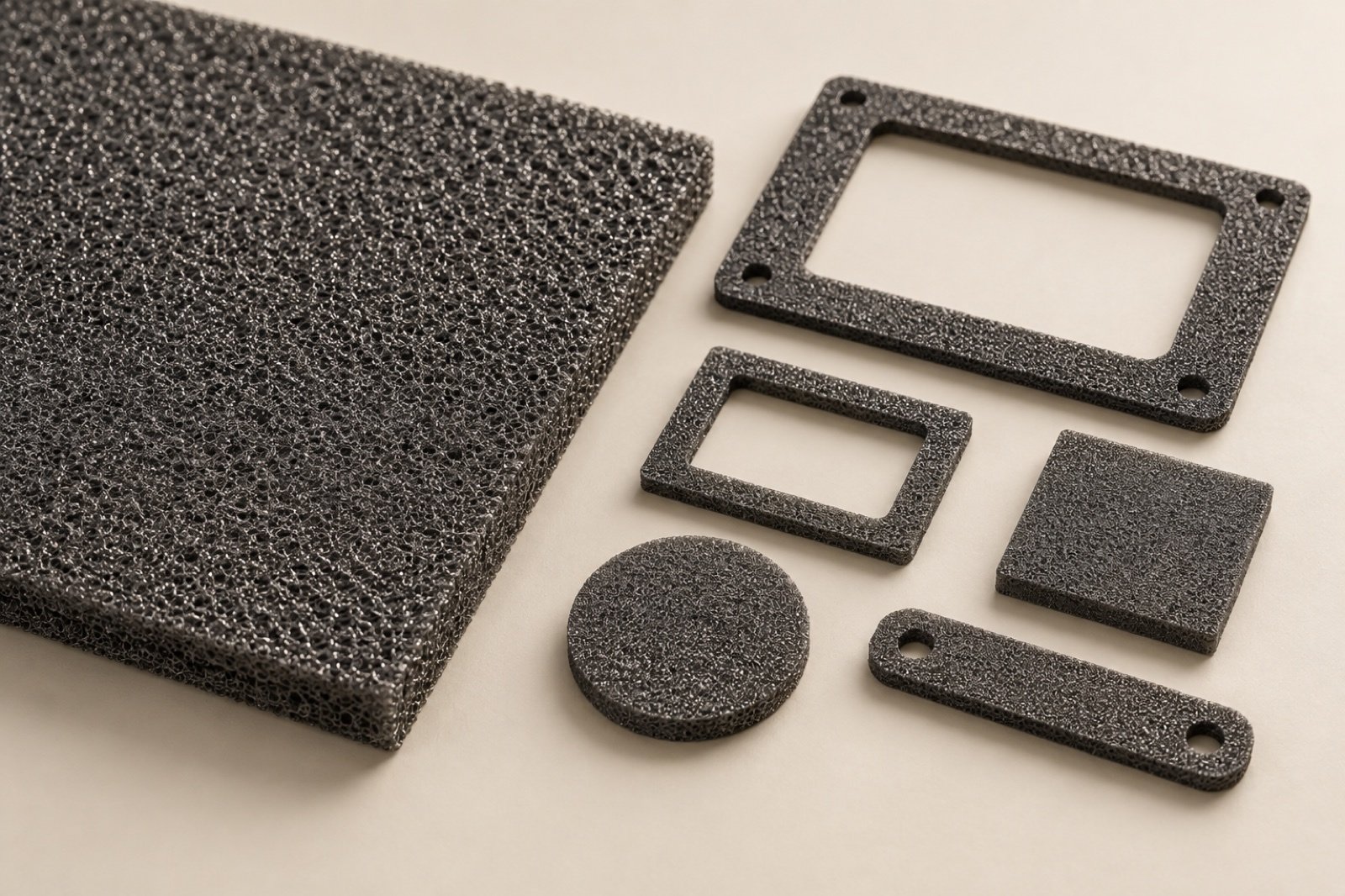

Conductive Foam
Conductive foam may be considered for a compressible interface where a die-cut part must fit between mating surfaces. Electrical contact and mechanical compression are project requirements to review together.
Conductive Fabric

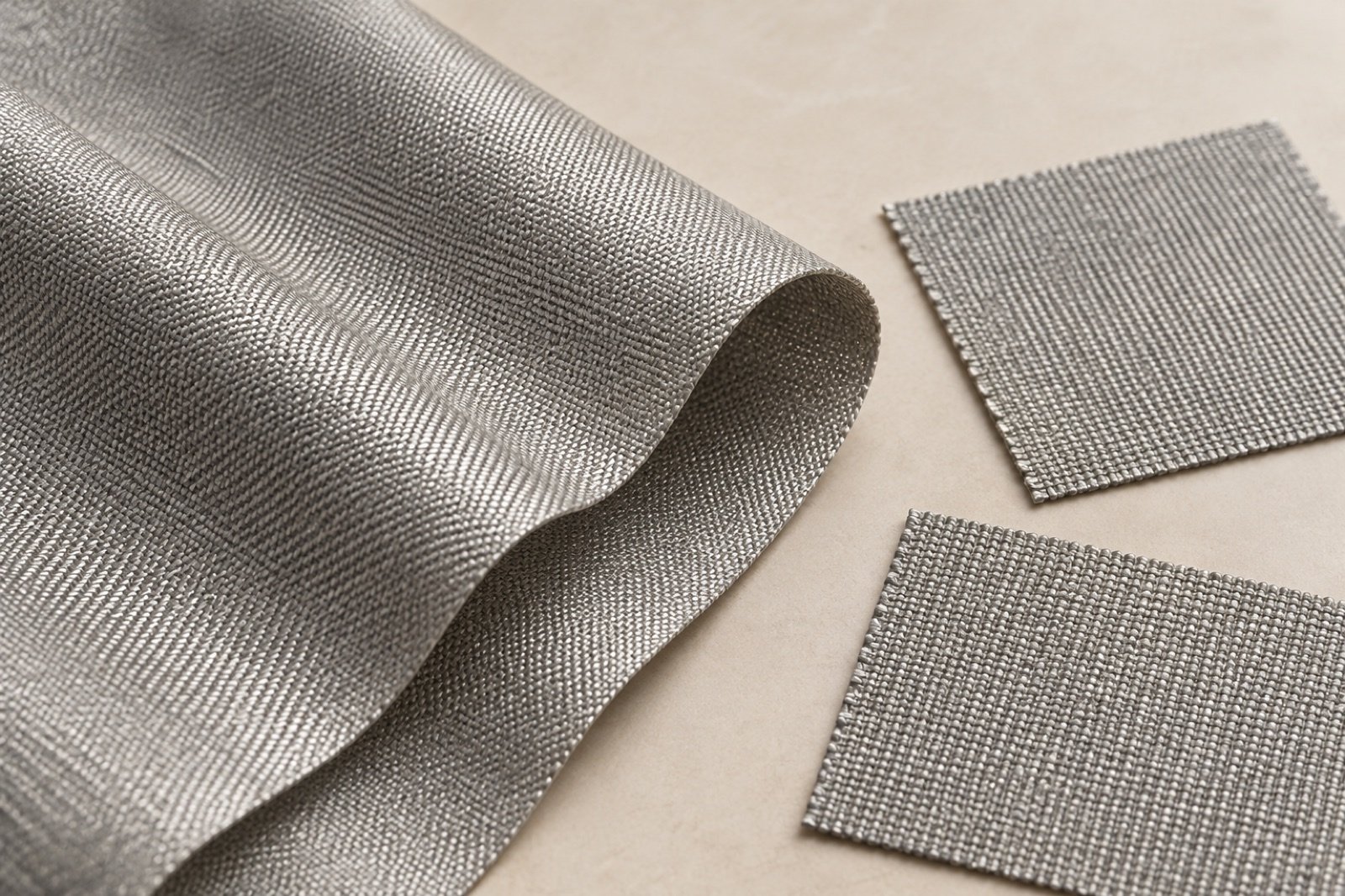

Conductive fabric may be evaluated as a flexible shielding material in an electronic assembly. Any fabric-over-foam or laminated construction depends on the selected materials and project specification.
EMI Shielding Tape & Conductive Adhesive Materials

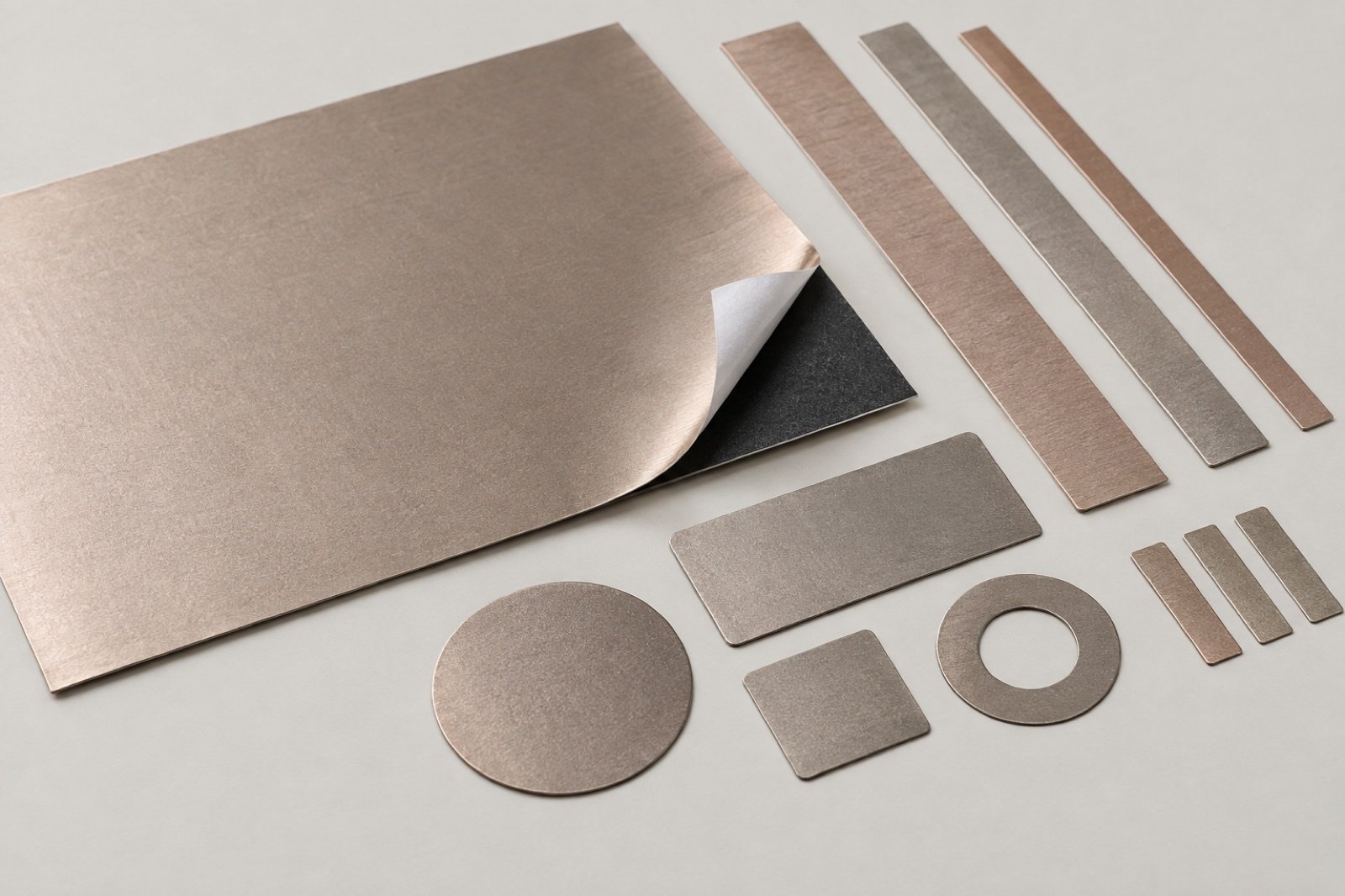

Shielding tape or conductive adhesive tape may be reviewed where an adhesive-backed interface and an electrical contact requirement occur in the same construction. Adhesive and contact details require project confirmation.
Metal Foil Materials

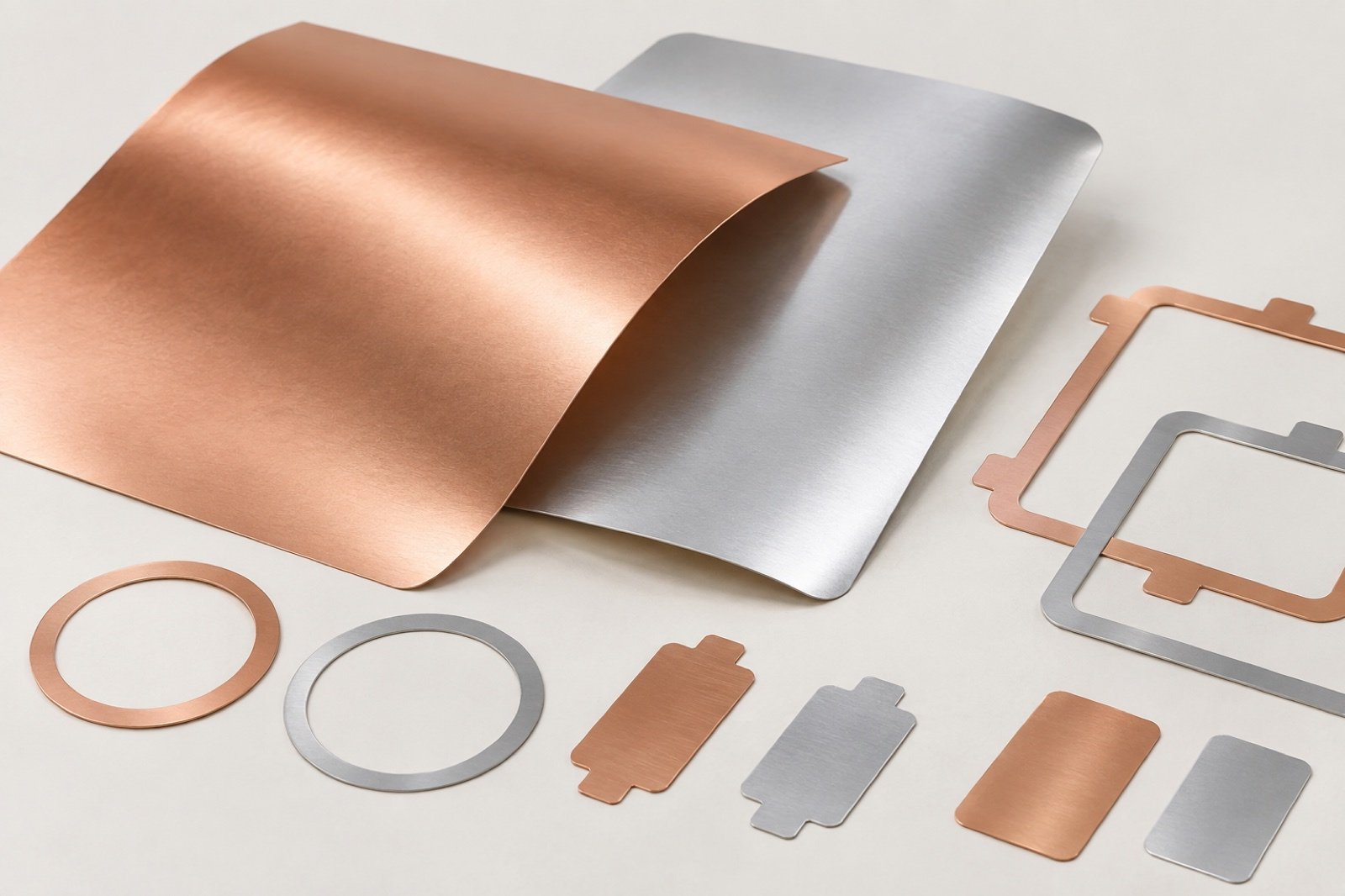

Copper or aluminum foil materials may be evaluated for custom conductive, grounding or shielding shapes. Foil type, backing and cut geometry are defined by the assembly rather than a standard tape format.
Ferrite & Magnetic Shielding Materials
Ferrite sheet and other magnetic-control materials may be evaluated when a project calls for electromagnetic noise management. Availability, material specification and converting feasibility must be confirmed before a material is proposed.
MATERIAL SELECTION

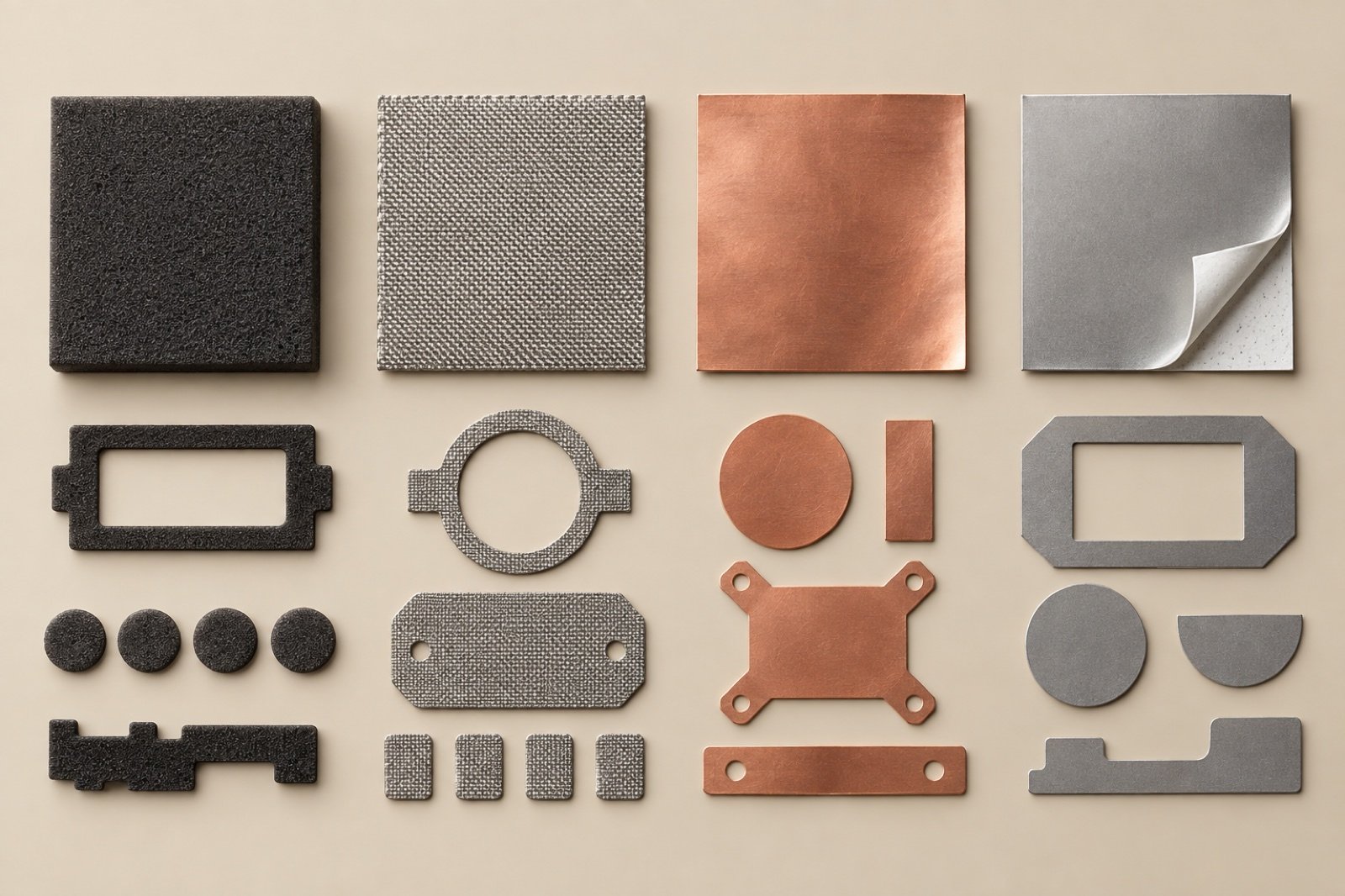

Selecting an EMI Shielding Material
Begin with the function and contact interface. A useful selection brief describes the geometry and assembly conditions, not a presumed material winner.
Shielding Function
What interference or interface must be managed?
Electrical Contact
Is conductive contact or grounding required?
Compression
Must the part compress between surfaces?
Thickness
How much space is available?
Adhesive Requirement
Is adhesive backing part of the structure?
Geometry
Which openings or contact areas matter?
Assembly
How does the part meet adjacent structures?
Environment
What operating conditions need review?
MATERIAL CONSTRUCTION
Material Forms & Constructions

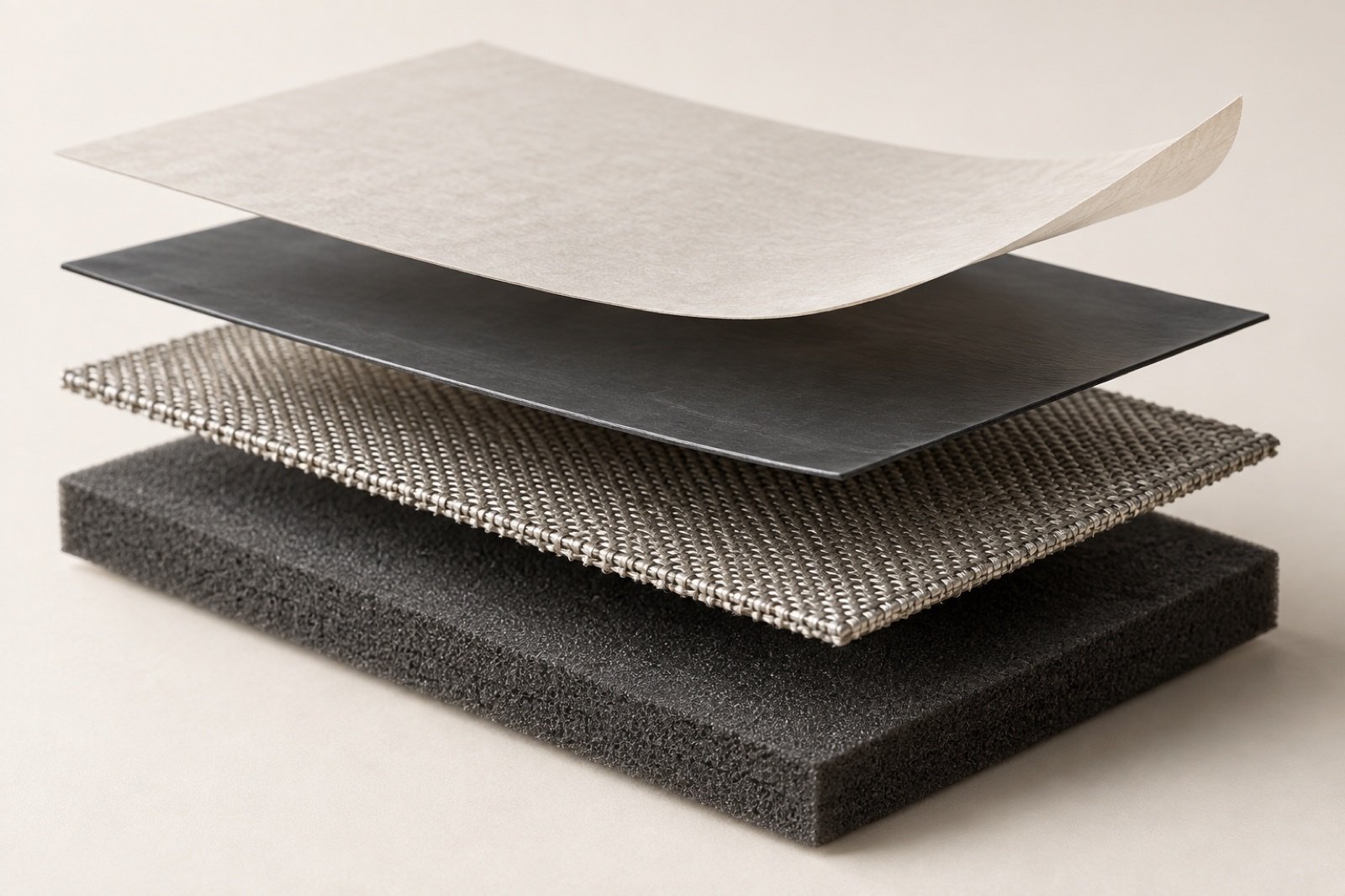

Sheet, fabric, foil, tape and adhesive-backed forms can lead to different component structures. The layer order shown is illustrative, not a universal specification.
MATERIAL TO COMPONENT
Die Cutting & Lamination
Material selection, optional adhesive backing and precision cutting connect the required interface to a custom component shape.
Shielding Material
Define material and contact needs.
Lamination & Bonding
Combine compatible layers if required.
03Precision Die Cutting
Cut the agreed profile and openings.
04Shielding Component
Review fit within the finished assembly.
ENGINEERING BRIEF
Engineering Considerations
Share what is known about the shielding function and contact interface. Unresolved material choices can be reviewed during quotation.
RELATED PRODUCT
From shielding material to finished interface.

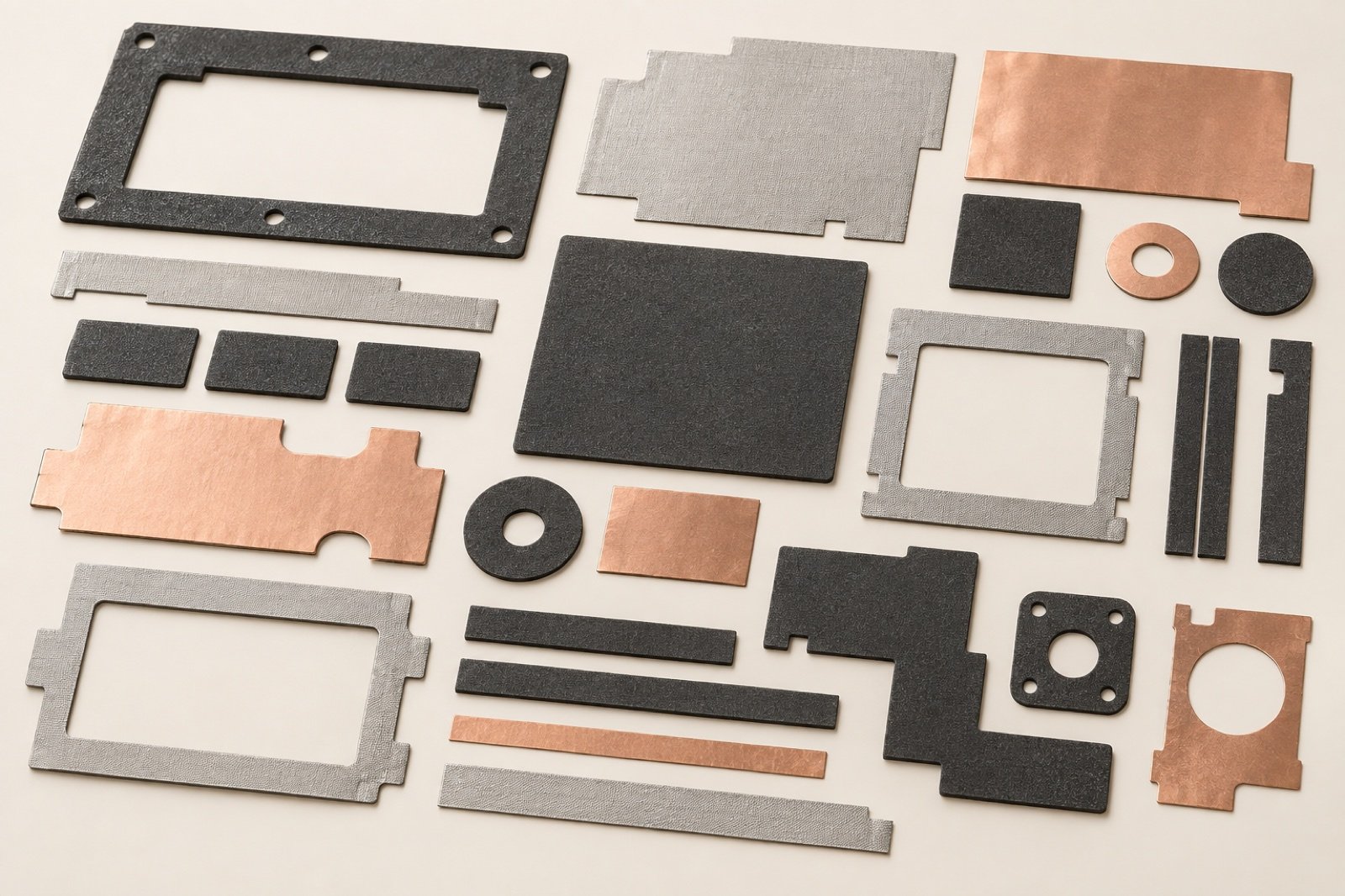

This page covers material form and selection. The product page covers custom die-cut shielding gaskets, pads and frames made for a defined assembly.
RELATED APPLICATIONS
Shielding starts with the assembly.
The contact surface, enclosure geometry and available space differ across industrial and electronic equipment.
MATERIAL / QUALITY REVIEW
Verify the Specified Construction

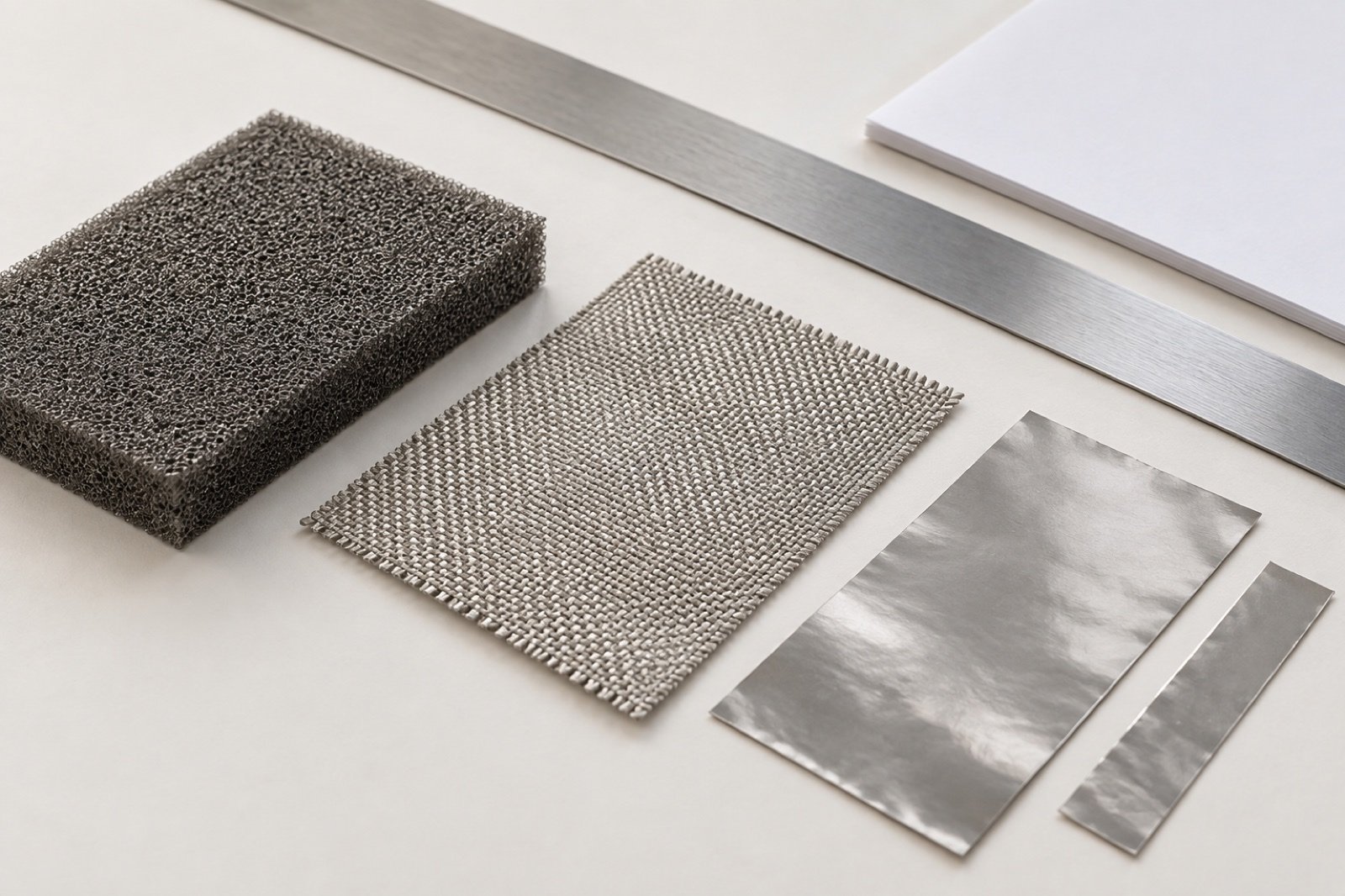

The drawing and agreed material specification determine the project checks. These may include layer confirmation, thickness review, dimensional inspection and visual inspection.
Explore Quality & Tolerance ControlFAQ
Shielding material questions.
Practical answers for material selection, construction and quotation planning.
What EMI shielding materials can be die cut?
Conductive foam, conductive fabric, shielding tape and metal foil forms may be evaluated for custom profiles. The specified grade and converting route need project review.
What is conductive foam used for in shielding components?
It may be considered where a component needs a compressible interface together with an electrical contact requirement. The geometry and compression conditions must be defined for the assembly.
Can conductive fabric be laminated before die cutting?
A laminated fabric construction may be evaluated if the selected materials and assembly requirements support it. The layer order and converting feasibility are confirmed for each project.
Can EMI shielding materials include adhesive backing?
Adhesive backing may be part of a specified shielding construction. The adhesive, electrical interface, liner and installation method need to be considered together.
How do I choose between conductive foam, fabric, tape and foil?
Start with the shielding function, electrical contact, compression, thickness, geometry, assembly and operating conditions. A material should not be selected by category name alone.
Can metal foil materials be custom die cut?
Metal foil sheets may be evaluated for custom shapes. Foil type, handling, backing and part geometry determine the appropriate construction and converting review.
Can ferrite or magnetic shielding materials be converted?
Ferrite sheet or other magnetic-control materials can only be considered after material availability, specification and converting feasibility are confirmed for the project. No standard grade is represented here.
What information is needed for an EMI shielding material quotation?
Provide the drawing or sample, shielding requirement, material specification if available, contact area, dimensions, assembly details and estimated quantity.
